Ultra-Light Cobweb Antenna
Horizontally polarized, 14/21/28 MHz omnidirectional dipole array—with optional 18/24 MHz coverage—weighs 0.9 kg and collapses to a 55 cm transport length. Unlike traditional heavy cobwebs, this system can be mounted directly on light fiberglass telescopic poles and deployed in under 15 minutes. The antenna handles 400 W CW, includes a choke Balun and two custom Mast Mounts to accommodate different mast sizes or serve as a spare.
192,00 €
3 in stock
Key Features
- Ultra Light: At just 0.9 kg (2.0 lbs), this antenna can be mounted on lightweight fiberglass or carbon-fiber telescopic poles.
- Compact Transport Length: Breaks down to just 0.55 m (21.6 in) with an included transport cover.
- 15 Minute Setup: Quick no-tool field deployment.
- Compact size: The 2.7 m × 2.7 m square footprint is ideal for space-restricted stations.
- Guy-Free Setup: No guy ropes are required in calm conditions when mounted at 10 m height on a Spiderbeam 12m HD pole.
- 400 W Power Handling (CW). Choke Balun is Included.
- 17/12 m Optional Bands: Add-on wires included. User installs mounting points and performs tuning (see Manual).
- Redundancy: Spare hardware included ensures operational continuity.
- 2x Mast Mount Sets: Included two custom-sized mounts so you can swap between different mast diameters or use as a spare. (Note: 3D-printable model files available upon request.)
- Quality Materials: ferrule-reinforced fiberglass tubes, 22 AWG FEP-jacketed copper wire, PETG Mast Mount, PTFE coax, stainless steel hardware.

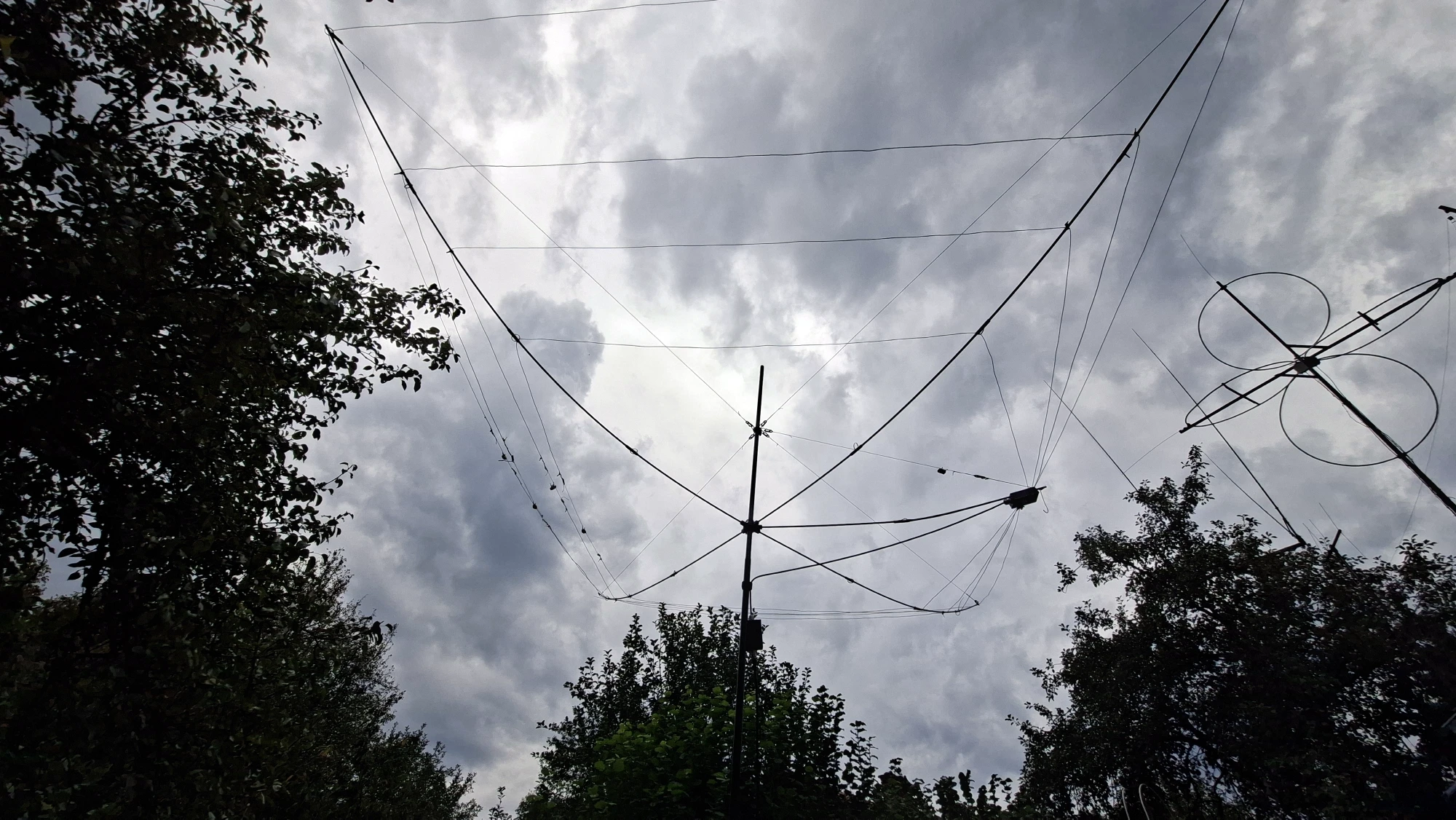

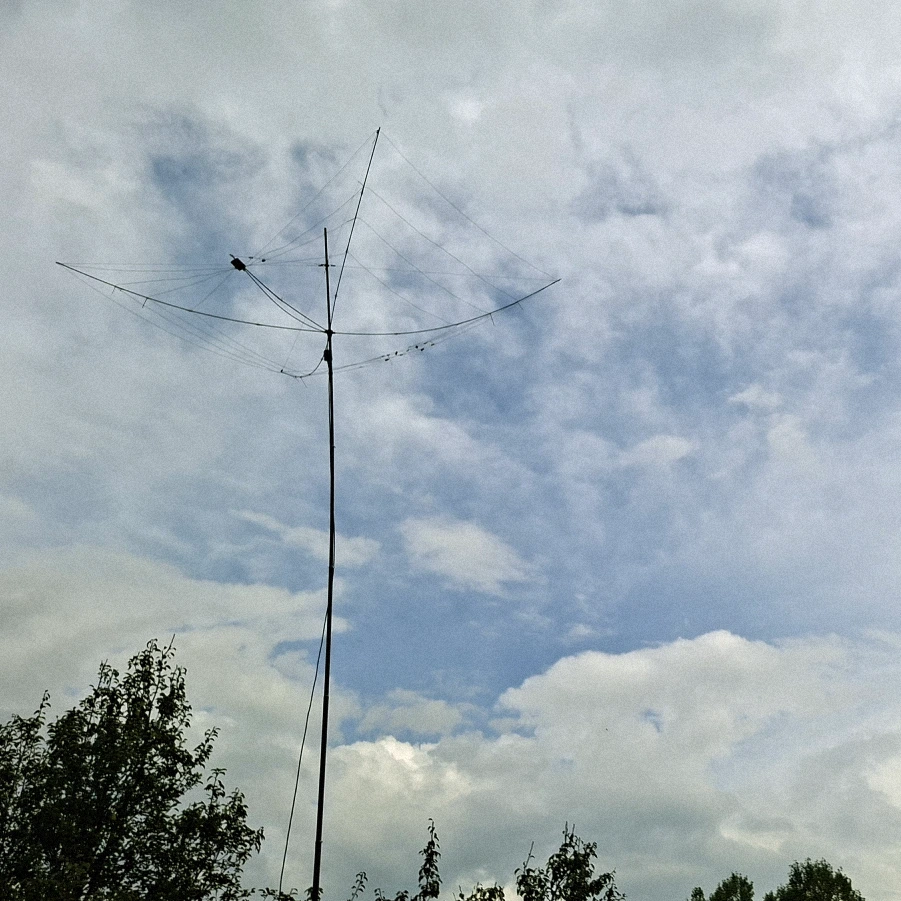

In the Field
What's in the box
Pre-tuned
Not pre-tuned
2× spreader, cord, key rings, simplex hooks, zip-ties
Shipping & warranty
Lead Time: 7 business days (usually faster).
Global shipping
Secure postal shipping with tracking.
Return Policy: If you are not satisfied with your antenna, you can return it within 30 days of receiving it for a full refund (customer pays return shipping).
Warranty Disclaimer: Product includes a 2-year guarantee covering factory defects and material non-conformity. Please note that this guarantee does not cover physical damage caused by improper setup, poor mounting, or harsh field handling. To keep you operational, each kit includes a spare mast mount, spare fiberglass spreaders, and access to 3D-printable model files so you can easily replace parts anytime.
